Venn Co.

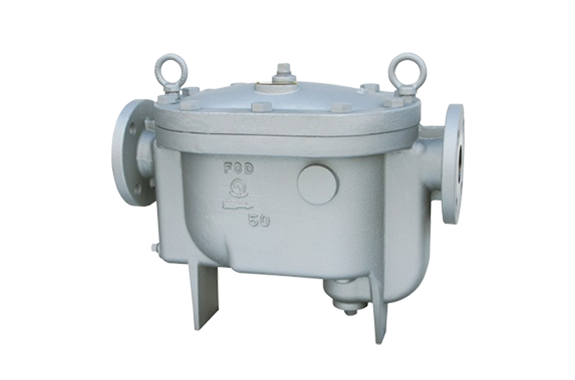

Venn AF-20F type mass trap
Manufacturer: Venn Co., Ltd.
Model: AF-20F
Features
- It supports a wide pressure range of up to 1.0 MPa.
- As a result, it can use in many applications.
- In addition, the membrane-type air vent valve prevents air-related problems.
- Moreover, it continuously discharges condensate.
Specifications
| Product code | AF20F-M |
|---|---|
| Valve type | steam trap |
| format | Float type |
| Nominal diameter | 25-50 (1-2) |
| Applicable fluid | steam |
| Fluid temperature | 184 ℃ or less |
| Applicable pressure | 1.0MPa or less |
| Maximum continuous emissions | 15840L / h |
| End connection | JIS 10K FF flange |
| Mounting posture | Upright mounting on horizontal piping |
| Material body | FCD |
| Material Valve body | SUS |
| Material Valve seat | SUS |
| Material Float case | SUS |
