Venn Co.

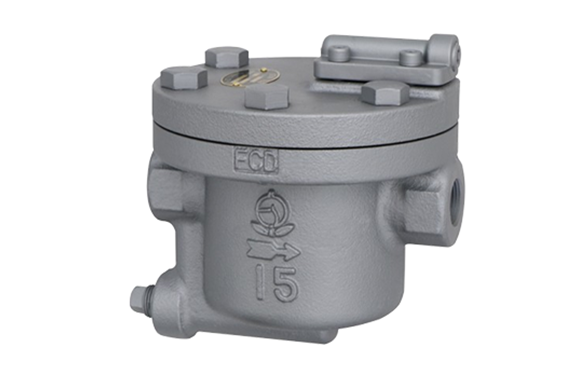

Venn AK-20 type steam trap
Manufacturer: Venn Co., Ltd.
Model: AK-20
Features
- The SSR shockless self-return mechanism adopts.
- As a result, impact during valve closing reduces.
- In addition, the valve body closes automatically regardless of bucket buoyancy.
- Therefore, it can operate reliably from low to high pressure.
- Moreover, a newly designed protector installed on the valve seat outlet side.
- As a result, wear resistance and corrosion resistance are improved, even under high pressure.
- This design also helps extend the service life.
Specifications
| Product code | AK20-M |
|---|---|
| Valve type | steam trap |
| format | Bucket type |
| Nominal diameter | 15-25 (1/2-1) |
| Applicable fluid | steam |
| Fluid temperature | 220 ℃ or less |
| Applicable pressure | 0.035-2.0MPa |
| Maximum continuous emissions | 610L / h |
| End connection | JIS Rc screw |
| Mounting posture | Upright mounting on horizontal piping |
| Material body | FCD |
| Material Valve body | SUS |
| Material Valve seat | SUS |
| Material float | SCS |
