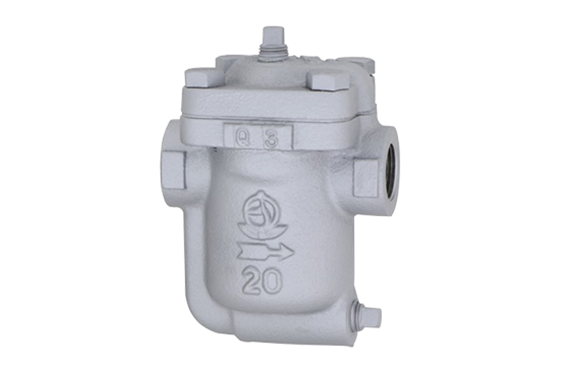

Venn AK-5 type steam trap
Manufacturer: Venn Co., Ltd.
Model: AK-5
Features
- The SSR shockless self-return mechanism adopts
- As a result, impact during valve closing reduces.
- In addition, the valve body closes automatically regardless of bucket buoyancy.
- Therefore, it can operate reliably from low to high pressure.
- Moreover, the compact body makes installation easy in tight spaces.
Specifications
| Product code | AK5-ML | AK5-MM | AK5-MH | AK5-MS | AK5-MV |
|---|---|---|---|---|---|
| Valve type | steam trap | ||||
| format | Bucket type | ||||
| Nominal diameter | 15-25 (1/2-1) | ||||
| Applicable fluid | steam | ||||
| Fluid temperature | 184 ℃ or less | 220 ℃ or less | |||
| Applicable pressure | 0.01-0.3MPa | 0.01-0.7MPa | 0.01-1.0MPa | 0.01-1.6MPa | 0.01-2.0MPa |
| Maximum continuous emissions | 300L / h | 220L / h | 175L / h | 160L / h | 120L / h |
| End connection | JIS Rc screw | ||||
| Mounting posture | Upright mounting on horizontal piping | ||||
| Material body | FCD | ||||
| Material Valve body | SUS | ||||
| Material Valve seat | SUS | ||||
| Material protector | SUS | ||||
