Manufacturer: Venn Co., Ltd.

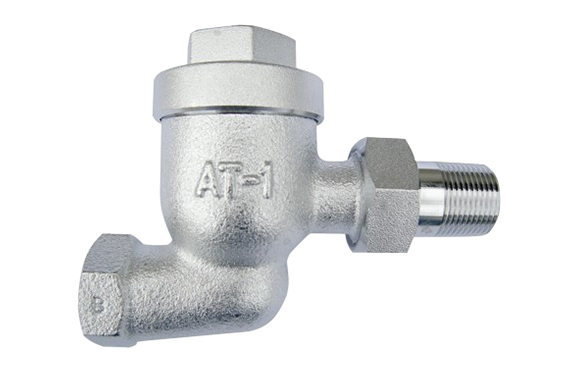

Model: BAT-1S
Features
- Because the design does not allow drainage to remain, it helps prevent freezing.
- In addition, drain and air at the start of ventilation discharge quickly.
Specifications
| Product code | AT1S-F |
|---|
| Valve type | steam trap |
|---|
| format | Bellows type |
|---|
| Nominal diameter | 15-25 (1/2-1) |
|---|
| Applicable fluid | steam |
|---|
| Fluid temperature | 120 ℃ or less |
|---|
| Applicable pressure | 10-100kPa |
|---|
| Maximum continuous emissions | 1900L / h |
|---|
| End connection | Inlet: JIS R screw (union fitting), Outlet: JIS Rc screw |
|---|
| shape | Straight type |
|---|
| Material body | CAC406 Nickel Chrome Plating |
|---|
| Material Valve body | C3604 |
|---|
| Material Valve seat | C3604 |
|---|
| Material bellows | C5212 |
|---|
