Venn Co.

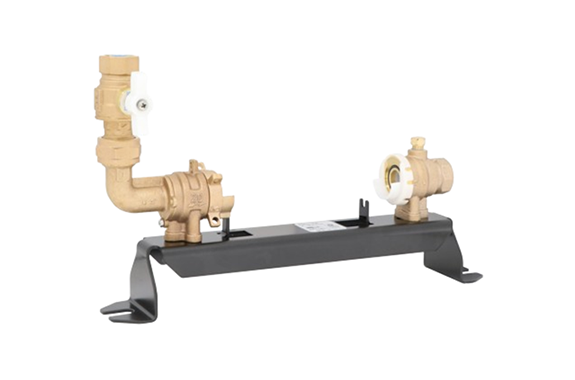

Venn BMU-5 Meter Unit
Manufacturer: Venn Co., Ltd.
Model: BMU-5
Features
- It has a lightweight and compact design that allows for ease of installation in narrow pipe shafts.
- Installing and removing the meter is a tool-free crimping type operated by the handle.
- It supports vertical and horizontal piping and flow directions from the right and left.
- The pedestal part has excellent corrosion resistance.
- The shut-off valve part can attach to a water shut-off cap.
Specifications
| Product Symbol | BMU5-F |
|---|---|
| Types of valves | Meter Unit |
| Types | No pressure reducing valve |
| Nominal diameter | 20（3/4） |
| Applicable fluids | Tap water |
| Fluid temperature | Room temperature |
| Primary Side Application Pressure | 1.0MPa or less |
| End connection | JIS RC 3/4 Screw (Built-in Movable Pipe End Core) |
| Pressure resistance | 1.75MPa |
| Material: Body | Bronze castings, etc. |
| Material pedestal | Steel plate |
