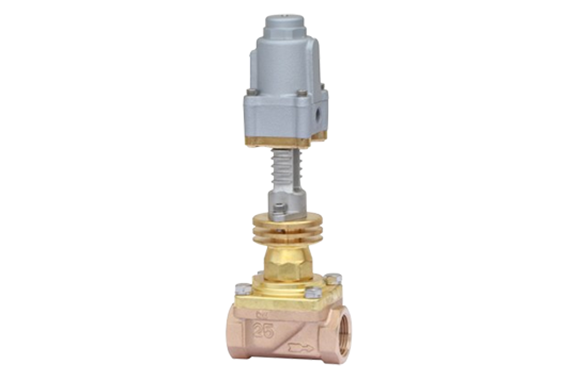

Venn CCS-1H Cylinder Valve
Manufacturer: Venn Co., Ltd.
Model: ML-FD
Features
- It is compact and lightweight.
- It can use across a wide pressure range.
- With various options available, you can select the valve that best suits your usage conditions.
Specification
| Product Symbol | CCS1H-W | CCS1H-V |
|---|---|---|
| Valve body part actuation | Valve closure when pressurized | |
| Valve body part type | Two-sided mouth | |
| Valve body nominal diameter | 10～65（3/8～2 1/2） | 10～50（3/8～2） |
| Valve body part Applicable fluid | Steam, hot water, oil | |
| Valve body fluid temperature | 180°C or less (100°C or less for hot water) | |
| Valve body fluid viscosity | －－－ | |
| valve body part applied pressure | 0～1.0MPa | |
| Valve body end connection | JIS Rc Screw | |
| Valve body part material body body | CAC | SCS |
| Valve body part material key part | SUS | |
| Valve body part material key part disc | Filler material into PTFE | |
| Valve body body pressure test | 1.5MPa at water pressure | |
| Drive Form | Single-acting (spring return) | |
| Drive Material | AC4C | |
| drive operating air pressure | 0.3～0.7MPa | |
| Drive Tightness Test | 0.9MPa by air pressure | |
