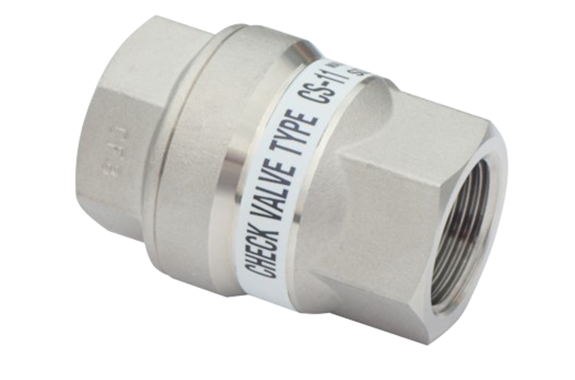

Venn CS-11 Check Valve (for High Temperature)
Manufacturer: Venn Co., Ltd.
Model: CS-11
Features
- Stainless steel uses for the main body and key parts, and it has excellent durability and corrosion resistance.
- It has a wide temperature range and can use on steam to hot water.
Specifications
| Product Symbol | CS11-D |
|---|---|
| Types of valves | Check Valve |
| Types | Single-type check valve with metal touch） |
| Nominal diameter | 15～25（1/2～1） |
| Applicable fluids | Steam, drain, hot water |
| Fluid temperature | Below 184°C |
| Application pressure | 1.0MPa or less |
| Valve body operability | 5 kPa or less (minimum valve opening pressure difference) |
| End connection | JIS Rc Screw |
| Mounting Position | Free (applies to bottom-to-top flow direction for vertical piping) |
| Material: Body | SCS13A |
| Material: Valve body | SUS |
| Material Key parts | SUS |
