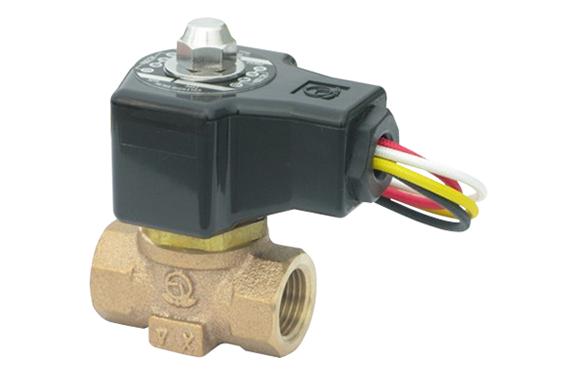

Venn DS-15 type solenoid valve
Manufacturer: Venn Co., Ltd.
Model: DS-15
Features
- It is small and lightweight.
- The structure is simple and maintenance is easy.
- A wide variety is available.
Specification
| Product code | DS15-W |
|---|---|
| type | Direct acting |
| Actuation | Energized open |
| Nominal diameter | 10-20 (3 / 8-3/4) |
| Applicable fluid | water・ Steam / oil (kerosene / light oil) air |
| Fluid temperature | 5 to 180 ° C (100 ° C or less for hot water) |
| Fluid viscosity | 50cSt or less |
| Allowable leakage amount | Water, steam, oil: none (visual pressure gauge), air: 25 L / min (standard condition) or less |
| Rated voltage | AC100 / 200V (50 / 60Hz) AC110 / 220V (60Hz) shared |
| Insulation type | H species |
| Ambient temperature | 5-60 ℃ |
| Mounting posture | Horizontal / vertical (excluding the coil downward with respect to the mounting posture) |
| Rated current | AC100V: 0.20A, AC200V: 0.10A |
| Starting current | AC100V: 0.60A, AC200V: 0.30A |
| Orifice diameter S: 4mm ・ Applicable pressure (MPa) | 1.0 or less |
| Orifice diameter H: 5.5mm ・ Applicable pressure (MPa) | 0.55 or less |
| Orifice diameter M: 7mm ・ Applicable pressure (MPa) | 0.3 or less |
| Orifice diameter L: 10mm ・ Applicable pressure (MPa) | 0.13 or less |
| Material body | CAC406 |
| Material parts | SUS / PTFE |
