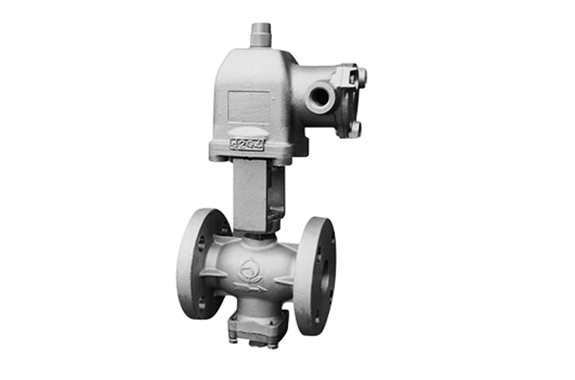

Venn EDE-F Explosion-proof Solenoid Valve (for liquids and gases)
Manufacturer: Venn Co., Ltd.
Model: EDE-F
Features
- The EDE-S type solenoid valve with a screw connection and the EDE-F type solenoid valve with a flange connection are semi-direct-acting two-way solenoid valves.
- They open and close using a strong electromagnet and are explosion-proof.
- These solenoid valves design for use in applications with high viscosity or low pressure.
Specifications
| Product Symbol | EDEF-J | EDEF-W | EDEF-B | EDEF-R |
|---|---|---|---|---|
| Types | Metal Touch | Disk | Metal Touch | Disk |
| Activate | Power on | |||
| Nominal diameter | 15～50（1/2～2） | 65・80（2 1/2・3） | ||
| Applicable fluids | Metal Touch: Water & Oil, Disc Input: Diesel・Kerosene・Inert gas | |||
| Fluid temperature | 5～100℃ | |||
| Fluid viscosity | Below 100cSt | |||
| Application pressure | 0～0.7MPa | |||
| Minimum differential pressure before and after the valve | 0MPa | |||
| Allowable leakage | Water/oil: 3 g/min or less, Air (in disc): 50 mL/min (standard state) or less | |||
| Rated voltage | AC100V 50Hz、AC100V 60Hz、AC200V 50Hz、AC200V 60Hz | |||
| Ambient temperature | 5～40℃ | |||
| Protective structure | Explosion-proof structure (d2G4 Type B insulation) for indoor use | |||
| End connection | JIS 10K FF Flange | |||
| Mounting Position | Upright mounting with coils up on horizontal piping | |||
| Material: Body | CAC406 | FC | ||
| Material: Key parts: Valve body | SUS | CAC406 | ||
| Material Key part disc | PTFE | |||
