Manufacturer: Venn Co., Ltd.
Model: EIE-FS
Features

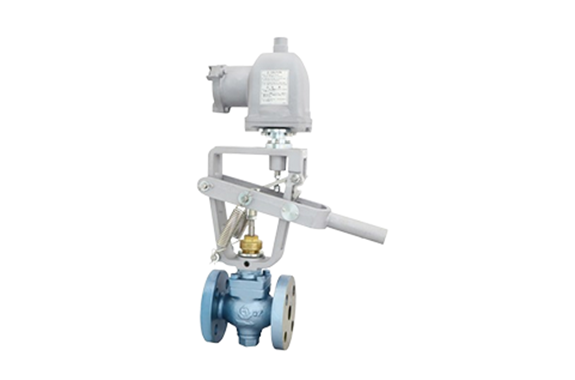

- It is an explosion-proof electromagnetic emergency shut-off valve installed on critical lines, such as storage tank fuel system piping. In the event of an earthquake, fire, or other accidents, the valve instantly closes via an electrical signal (such as from a seismic sensor) to block the fluid and prevent secondary disasters.
- When opening the valve, the electrical signal returns after confirming safety, and the valve operates when the manual lever lifts, providing a safer manual return mechanism.
Specification
| Product Symbol | EIEFS-RB | EIEFS-HB | EIEFS-BB |
|---|
| Types of valves | electric |
|---|
| Uses | for liquids | for gases | for steam |
|---|
| Activate | Valve closes when power is lost, and opens manually when power is applied |
|---|
| Nominal diameter | 15～200（1/2～8） |
|---|
| Applicable fluids | Fuel oil・Water and oil | Fuel gasAir | Steam |
|---|
| Fluid temperature | 5～100℃ | 5～60℃ | Below 180°C |
|---|
| Fluid viscosity | Below 900cSt |
|---|
| Rated voltage | AC100V 50Hz、AC100V 60Hz、AC200V 50Hz、AC200V 60Hz |
|---|
