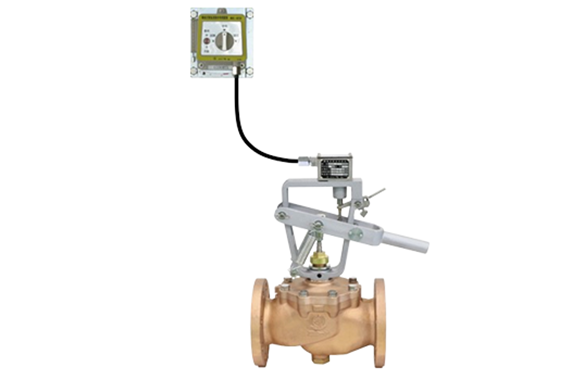

Venn EIM-3 Mechanical Emergency Shut-Off Valve

Manufacturer: Venn Co., Ltd.
Model: EIM-3

Features

We offer a range of models that can control up to 2 or 4 emergency shut-off valves with a single control panel.
The built-in battery ensures the emergency shut-off system operates for about 5 hours, even in the event of a power outage.

Specification

Product Symbol	EIM3-WA
Types of valves	Mechanical
Types	Made of bronze
Activate	Valve closure when the shock sensor is activated (after the shock sensor is returned, the shut-off valve is manually opened)
Nominal diameter	50～100（2～4）
Applicable fluids	Fuel oi・Gas・WaterAir・Oil(Steam）
Fluid temperature	5～60℃
Application pressure	1.0MPa
Protective structure	Dustproof type/indoor use (If you want to use it outdoors, please use it with a rainproof cover.) ）
Ambient temperature	-10~50°C (cannot be frozen)
End connection	JIS 10K FF Flange
Mounting Position	Upright mounting on horizontal piping
Application Differential Pressure Limit	Nominal diameter 15~25: 1.0 MPa or less Nominal diameter 32~40: 0.7 MPa or less Nominal diameter 50: 0.5 MPa or less Nominal diameter 65: 0.2 MPa or less Nominal diameter 80: 0.2 MPa or less Nominal diameter 100: 0.1 MPa or less Nominal diameter 125: 0.1 MPa or less Nominal diameter 150: 0.05 MPa or less Nominal diameter 200: 0.04 MPa or less
Allowable leakage	None (pressure gauge visual)
Material: Body	CAC
Material: Valve body	SUS
Material: Disc	PTFE
Vibration sensor operation method	Heavy hammer magnet type (mechanical type)
Shock sensor motion display	Shock sensor body display window Green: Warning display Red: Operating display
Shock Sensor Reset Method	By the rotation of the “knob” on the front of the shock sensor
Seismic sensor Seismic detection function	Operating acceleration: 200 gal (equivalent to seismic intensity 5)
Vibration sensor operation inspection	Manual operation by rotating the “knob” on the front of the shock sensor
Seismic sensor accuracy inspection	Confirmation of the operating angle by tilting the seismic sensor.
Shock Sensor Weather Resistance	Simple splash-proof structure, indoor use (If you want to use it outdoors, please use a special box.)
Shock Sensor Operating Temperature Range	－10～50℃
Seismic Sensor Operating Humidity Range	90% RH or less
Seismic sensor release length	1,000mm (applicable straight-line distance 500~700mm), according to the release length chart
