Venn Co.

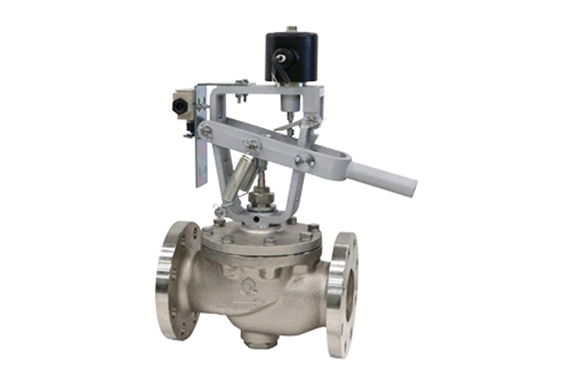

Venn EIT-2DN type electromagnetic emergency shutoff valve
Manufacturer: Venn Co., Ltd.
Model: EIT-2DN
Features
- This electromagnetic emergency shut-off valve is compatible with an emergency shut-off system for water tanks.
- The body makes of stainless steel or bronze, ensuring there is no red water.
- It can integrate with the CB type control panel to create a comprehensive emergency shut-off system for the water tank.
Specification
| Product code | EIT2DN-VC |
|---|---|
| Valve type | Electric type |
| type | Water supply law performance standard compliant product (Made of stainless steel) |
| Actuation | Valve closed when the seismic sensor operates (valve closed when energized) (After operating the control panel seismic sensor return button) Manually open the shutoff valve |
| Nominal diameter | 50-200 (2-8) |
| Applicable fluid | water |
| Fluid temperature | 5-60 ℃ |
| Rated voltage | DC24V |
| Rated current | 0.92A |
| Protective structure | Dustproof type (Class B insulation structure), for indoor use |
| Ambient temperature | -10-40 ℃ (cannot be frozen) |
| End connection | JIS 10K FF flange |
| Mounting posture | Upright mounting on horizontal piping |
| Rated pressure | 1.0MPa |
| Applicable differential pressure limit | Nominal diameter 125 or less: 0.1 MPa or less Nominal diameter 150: 0.05 MPa or less Nominal diameter 200: 0.04 MPa or less |
| Allowable leakage amount | None |
| Standard accessories | With 1 limit switch (no voltage, control panel open / close display / pump interlock) |
| Material body | SCS |
| Material Valve body | SUS (with PTFE disc) |
