Venn Co.

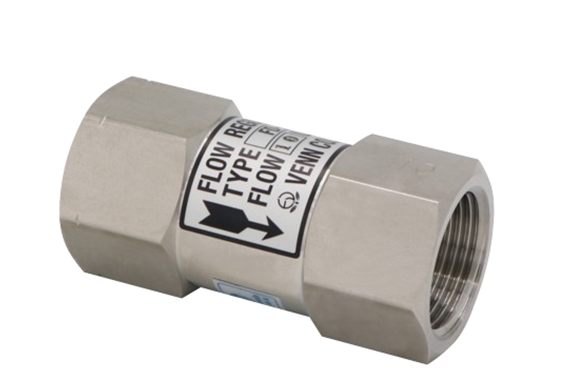

Venn FD-14 type constant flow valve (hot water / tap water)
Manufacturer: Venn Co., Ltd.
Model: FD-14
Features
- The mounting posture is free.
- Compact design and easy to handle.
- The main part made of SUS and has excellent corrosion resistance. (FD-13N type)
- Made of all stainless steel. (FD-14 type)
Specifications
| Product code | FD14-D |
|---|---|
| Valve type | Constant flow valve |
| Use | For water and hot water supply |
| Nominal diameter | 20/25 (3/4/1) |
| Applicable fluid | Hot water / tap water |
| Fluid temperature | 5 to 90 ° C |
| Primary side applied pressure | 1.0MPa or less |
| Operating differential pressure range | 0.05-0.3MPa |
| Set flow rate / symbol | 08: 8L / min, 10:10 L / min, 12: 12L / min, 15: 15L / min, 20: 20L / min (tolerance: within ± 15% of set flow rate) |
| End connection | JIS Rc screw |
| Mounting posture | Horizontal / vertical freedom |
| Material body | SUS |
| Material parts | SUS |
