Venn Co.

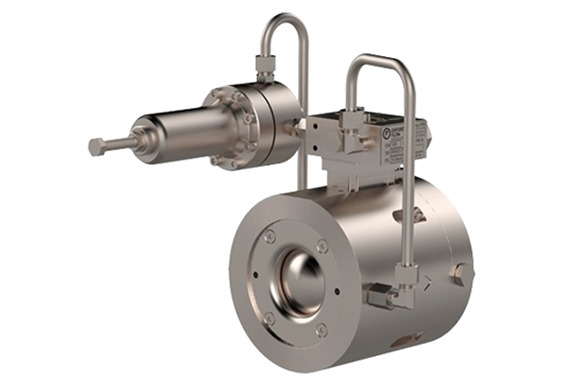

Venn IP-W Pressure Reducing Valve (for Liquids)
Manufacturer: Venn Co., Ltd.
Model: IP-W
Features
- Compact, lightweight, and reliable pressure control
- Axial piston structure
- Simple construction and high durability
Specification
| Product Symbol | IP-W/PRX1 |
|---|---|
| Types of valves | Pressure Reducing Valve |
| Types | For up to 25bar |
| Nominal diameter | 50～150（2～6） |
| Applicable fluids | Non-corrosive liquid |
| Fluid temperature | -20～60℃ |
| Primary Side Application Pressure | Below 25bar |
| Secondary Side Regulation Pressure Range (Set Pressure) | 1 ：～2.7bar、 2 ：～8bar、 3 ：～12bar、 3 ：～22bar |
| Maximum Reduction Ratio | Please contact us as it depends on the conditions of use. |
| End connection | Wafer type (PN & ANSI flange conformant) |
| Mounting Position | Horizontal and vertical (flow direction from bottom to top only) |
| Material: Body | SUS316 |
