Manufacturer: Venn Co., Ltd.

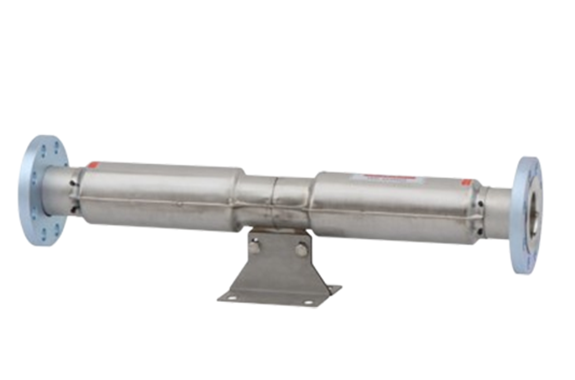

Model: JB-24
Features
- Durability improves by adopting a double-layer bellows.
- In addition, all parts except the flange makes of stainless steel.
- Moreover, a loose flange uses for the end connection.
- As a result, it absorbs circumferential bolt hole misalignment and makes installation easier.
Specifications
| Product code | JB24-N |
|---|
| Valve type | Bellows type expansion joint |
|---|
| Nominal diameter | 20-300 (3/4-12) |
|---|
| Applicable fluid | Steam, air, inert gas, water, hot water, oil |
|---|
| Fluid temperature | 250 ℃ or less |
|---|
| Maximum working pressure | 2.0MPa |
|---|
| End connection | JIS 20K loose flange |
|---|
| Expansion and contraction amount | 70mm |
|---|
| Growth | 20mm |
|---|
| Shrink | 50mm |
|---|
| Material Flange | Carbon steel |
|---|
| Material outer cylinder | Stainless steel |
|---|
| Material Inner cylinder | A240-316L (equivalent to SUS316L) |
|---|
| Material bellows | A240-316L (equivalent to SUS316L) |
|---|
