Venn Co.

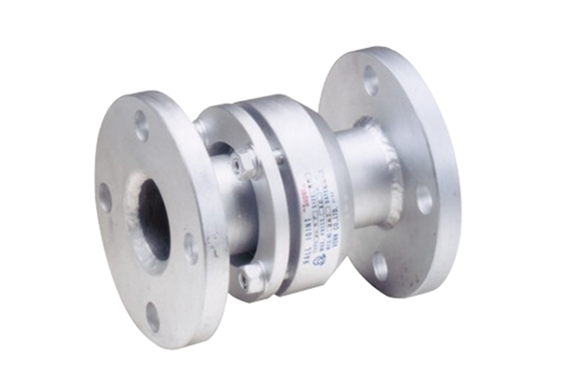

Venn JU-3F type ball joint
Manufacturer: Venn Co., Ltd.
Model: JU-3F
Features
- A large amount of displacement can absorb within a small space.
- As a result, the force applied to the anchor reduces.
- Therefore, the anchor itself can make smaller.
- Moreover, it can simultaneously absorb movements such as piping thermal expansion and ground subsidence.
Specifications
| Product code | JU3F-N |
|---|---|
| Valve type | Ball joint |
| Nominal diameter | 50-300 (2-12) |
| Applicable fluid | Steam, air, gas, water, hot water, oil |
| Fluid temperature | 220 ℃ or less |
| Maximum working pressure | 1.0MPa |
| End connection | JIS 10K FF flange |
| Material Flange | SS |
| Material packing | Graphite |
| Material ball | SUS |
| Material End pipe | STPG |
