Venn Co.

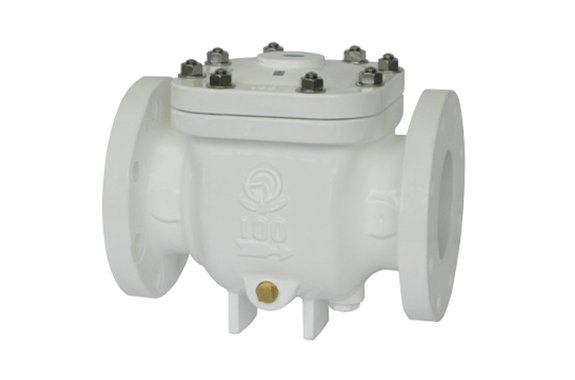

Venn KT-1CN Strainer
Manufacturer: Venn Co., Ltd.
Model: KT-1CN
Features
- This is a straight-type strainer with a completely new design concept.
- It eliminates common problems of conventional strainers, such as difficult construction, poor maintainability, and pressure loss.
- In addition, the KT-1PN model features an epoxy resin powder coating for water supply applications.
- Moreover, the KT-1CN model uses a durable nylon coating.
Specifications
| Product Symbol | KT1CN-G |
|---|---|
| Types of valves | Straight |
| Types | Nylon Coating |
| Nominal diameter | 50～200（2～8） |
| Applicable fluids | Water and hot water |
| Fluid temperature | 5～60℃ |
| Application pressure | 1.0MPa or less |
| End connection | JIS 10K FF Flange |
| Website | 60 Mesh 20, 40, 80, 100 Mesh |
| Allowable differential pressure | Less than 0.1MPa |
| Painting | Body/lid: Nylon 11 coating on both internal and external surfaces 0 3mm or more (white) |
| Material: Body | FC |
| Material: Net | SUS |
