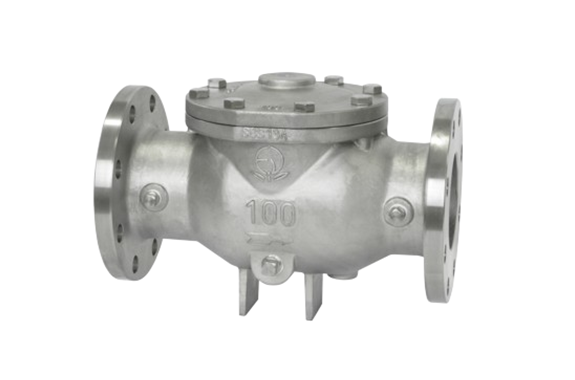

• This is a straight-type strainer with a completely new design concept.
• It eliminates common problems of traditional strainers, such as complex construction, difficult maintenance, and pressure loss.
• In addition, it is made of stainless steel, which provides excellent corrosion resistance and durability.
• Moreover, the KT-3A type allows the strainer screen to be inspected by loosening just one bolt.
• As a result, it is ideal for locations where frequent cleaning requires.

Specifications

• Product Symbol	KT3-D
  Types of valves	Straight
  Types	bolted
  Nominal diameter	50～300（2～12）
  Applicable fluids	Steam, gas, liquid
  Fluid temperature	Below 150°C
  Application pressure	1.0MPa or less
  End connection	JIS 10K FF Flange
  Website	60 Mesh 20, 40, 80, 100 Mesh
  Allowable differential pressure	Less than 0.1MPa
  Material: Body	SCS13
  Material: Net	SUS
  Material: Lid	SCS13
