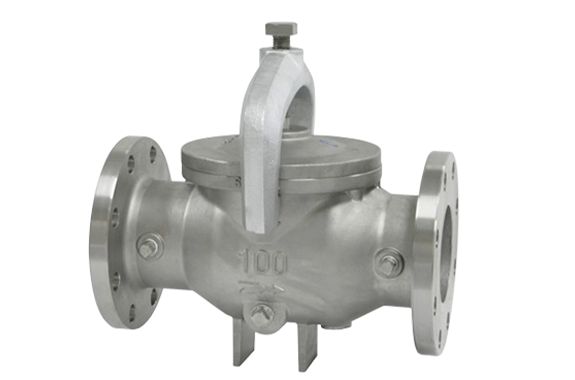

- This is a straight-type strainer with a completely new concept.
- It eliminates common problems of conventional strainers, such as difficult construction, poor maintainability, and pressure loss.
- In addition, it is made of stainless steel, which offers excellent corrosion resistance and durability.
- Moreover, the KT-3A type allows the strainer screen to be inspected with a single bolt.
- As a result, it is ideal for locations where frequent cleaning requires.
Specifications
| Product Symbol | KT3A-D |
|---|---|
| Types of valves | Straight |
| Types | Gut type |
| Nominal diameter | 50～150（2～6） |
| Applicable fluids | Gases and liquids |
| Fluid temperature | 5～90℃ |
| Application pressure | Nominal diameter 50~100: 1.0 MPa or less Nominal diameter 125: 0.75 MPa or less Nominal diameter 150: 0.5 MPa or less |
| End connection | JIS 10K FF Flange |
| Website | 60 Mesh 20, 40, 80, 100 Mesh |
| Allowable differential pressure | Less than 0.1MPa |
| Material: Body | SCS13 |
| Material: Net | SUS |
| Material: Lid | SCS13 |
