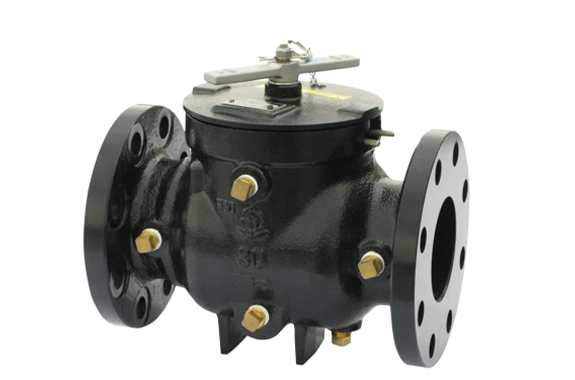

- This is a straight-type strainer with a completely new concept.
- It eliminates common problems of traditional strainers, such as complex construction, difficult maintenance, and pressure loss.
- In addition, the KT-7 type is a tool-less strainer.
- As a result, it can disassemble without using any tools.
Specifications
| Product Symbol | KT7-M |
|---|---|
| Types of valves | Straight |
| Nominal diameter | 80～200（3～8） |
| Applicable fluids | Water, hot water, liquid・Gas |
| Fluid temperature | 5～90℃ |
| Application pressure | 1.0MPa or less |
| End connection | JIS 10K FF Flange |
| Website | 60 Mesh 20, 40, 80, 100 Mesh |
| Allowable differential pressure | Less than 0.1MPa |
| Installation location | For indoor use (for outdoor installation, please use a rain cover.) |
| Painting | Body and lid: Both internal and external cationic electrodeposition coating |
| Material: Body | FCD |
| Material: Net | SUS |
| Material: Lid | FCD |
