Venn Co.

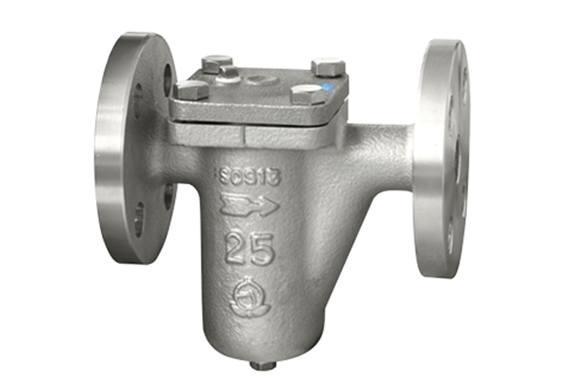

Venn KU-2 type strainer
Manufacturer: Venn Co., Ltd.
Model: KU-2
Features
- It makes of stainless steel, which provides excellent corrosion resistance and durability.
- In addition, the strainer screen removes from the top.
- As a result, liquid does not overflow during disassembly.
- Moreover, the KU-2A type allows the screen to be inspected by loosening just one bolt.
- Therefore, it is ideal for locations where frequent cleaning requires.
Specifications
| Product Symbol | KU2-D2 | KU2-D |
|---|---|---|
| Types of valves | U-shaped | |
| Types | bolted | |
| Nominal diameter | 15～100（1/2～4） | |
| Applicable fluids | Water・Oil and gas | |
| Fluid temperature | Below 150°C | |
| Application pressure | 1.0MPa or less | |
| End connection | JIS 10K FF Flange | |
| Website | 60 mesh | 20, 40, 80, 100 mesh |
| Allowable differential pressure | Less than 0.1MPa | |
| Material: Body | SCS13 | |
| Material: Net | SUS316 | |
| Material: Lid | SCS13 | |
