Venn Co.

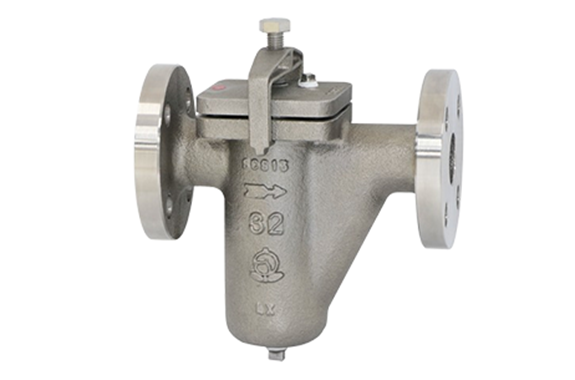

Venn KU-2A type strainer
Manufacturer: Venn Co., Ltd.
Model: KU-2A
Features
- It makes of stainless steel, offering excellent corrosion resistance and durability.
- In addition, the strainer screen removes from the top.
- As a result, liquid does not overflow during disassembly.
- Moreover, the KU-2A type allows the screen to be inspected by loosening just one bolt.
- Therefore, it is ideal for locations where frequent cleaning requires.
Specifications
| Product code | KU2A-D |
|---|---|
| Valve type | U shape |
| type | Catgut type |
| Nominal diameter | 15-80 (1/2-3) |
| Applicable fluid | Water / oil |
| Fluid temperature | 80 ℃ or less |
| Applicable pressure | 1.0MPa or less |
| End connection | JIS 10K FF flange |
| Mesh | 20, 40, 60, 80, 100 mesh |
| Tolerant differential pressure | 0.1MPa or less |
| Material body | SCS13 |
| Material net | SUS316 |
| Material lid | SCS13 |
