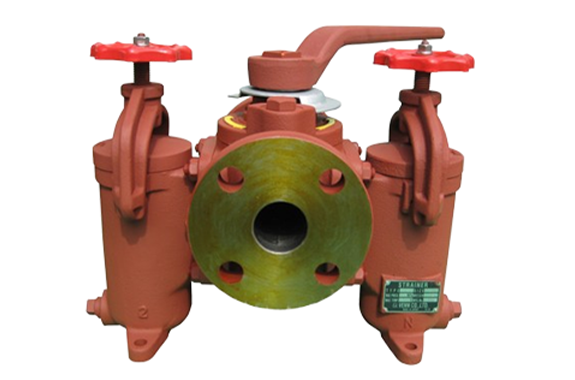

- This is a compound strainer for water and oil.
- It has filter tubes on both the left and right sides around a switching cock.
- As a result, one filter tube can clean while the other remains in operation.
- Therefore, continuous flow maintains without interruption during maintenance.
Specifications
| Product code | KW2-G2 | KW2-G |
|---|---|---|
| Valve type | Double-entry | |
| Nominal diameter | 15-100 (1/2-4) | |
| Applicable fluid | Water / oil | |
| Fluid temperature | 110 ℃ or less | |
| Applicable pressure | 0.7MPa or less | |
| End connection | JIS 10K FF flange | |
| Mesh | 60 mesh | Nominal diameter 50 or less: 20-200 mesh punch holes (punched plate) Nominal diameter 65 or more: 5 to 200 mesh punch holes (punched plate) |
| Tolerant differential pressure | 0.1MPa or less | |
| Material body | FC | |
| Material net | SUS | |
