Venn Co.

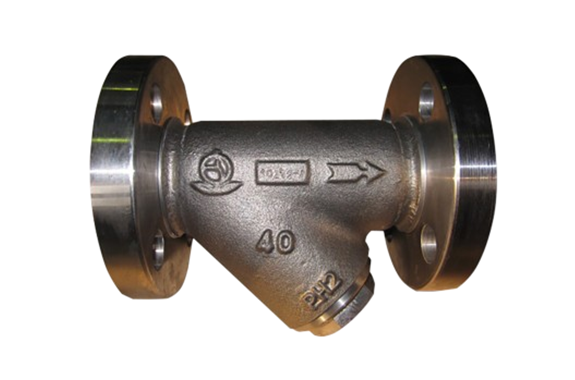

Venn KY-3 type strainer
Manufacturer: Venn Co., Ltd.
Model: KY-3
Features
- This is a high-pressure Y-shaped strainer.
- It makes of cast steel and is available with 10K, 16K, 20K, and 30K flanges.
- In addition, it has a compact design with a large filtration area.
- As a result, it is suitable for use in automatic valve piping lines.
Specifications
| Product Symbol | KY3-C |
|---|---|
| Types of valves | Y-shaped |
| Nominal diameter | 15～250（1/2～10） |
| Applicable fluids | Steam, gas, liquid |
| Fluid temperature | Below 300°C |
| Application pressure | 1.0, 1.6, 2.0, 3.0 MPa or less |
| End connection | JIS 10, 16, 20, 30K RF Flange |
| Website | 40, 60, 80, 100 mesh |
| Allowable differential pressure | Less than 0.1MPa |
| Painting | Inner surface: Anti-rust oil Outer surface: Silver |
| Material: Body | SCPH |
| Material: Net | SUS |
