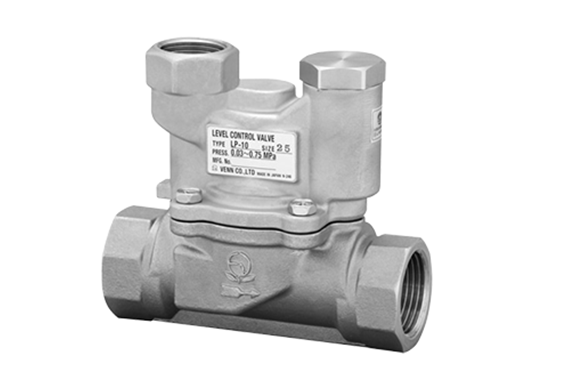

Venn LP-10 type constant water level valve (stainless steel)
Manufacturer: Venn Co., Ltd.
Model: LP-10
Features
- Both the main body and main parts makes of stainless steel that is resistant to corrosion.
- Equipped with a flow rate adjustment mechanism and a needle for adjusting the valve closing time.
- Since the passage to the pilot pipe is a bypass passage, there is no effect of intermittent water supply from the ball tap due to waves, and quiet and stable water supply provides.
Specifications
| Product code | LP10-D |
|---|---|
| Valve type | Constant water level valve |
| Nominal diameter | 20-50 (3/4-2) |
| Applicable fluid | Tap water / industrial water |
| Fluid temperature | 5-60 ℃ |
| Applicable pressure | 0.03 to 0.75MPa |
| Minimum differential pressure before and after the valve | 0.03MPa |
| End connection | JIS Rc screw |
| Flow rate adjustment mechanism | ─── |
| Valve closing time adjustment needle | ─── |
| Drainage mechanism | ─── |
| Mounting posture | Upright mounting on horizontal piping |
| accessories | Ball tap made of stainless steel with a nominal diameter of 20 (with water stop level adjustment mechanism) |
| Material body | SCS |
| Material parts | SUS |
| Material diaphragm | NBR |
