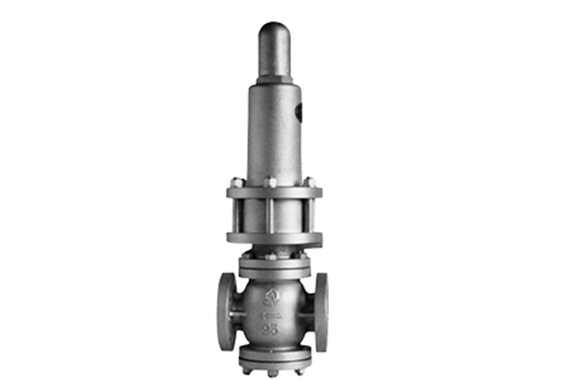

Venn MD-2P type primary pressure control valve (for oil and liquid)
Manufacturer: Venn Co., Ltd.
Model: MD-2P
Specifications
| Product code | MD2P-B | MD2P-C |
|---|---|---|
| Valve type | Primary pressure control valve | |
| Nominal diameter | 20-150 (3/4-6) | |
| Applicable fluid | oil ·liquid | |
| Fluid temperature | 5-80 ℃ | |
| Set pressure adjustment range | Nominal diameter 50 or less L: 0.05 to 0.25MPa, M: 0.25 to 0.45MPa, H: 0.45 to 0.7MPa Nominal diameter 65 or more L: 0.05-0.2MPa, M: 0.2-0.5MPa, H: 0.5-0.7MPa | |
| Blow-down pressure | Set pressure x 10% or less (minimum value 0.03MPa) | |
| Fluid viscosity | 700cSt or less | |
| End connection | JIS 10K FF flange | |
| Mounting posture | Upright mounting on horizontal piping | |
| Material body | FC | SCPH |
| Material Valve body | CAC502 | SUS |
| Material Valve seat | CAC502 | SUS |
