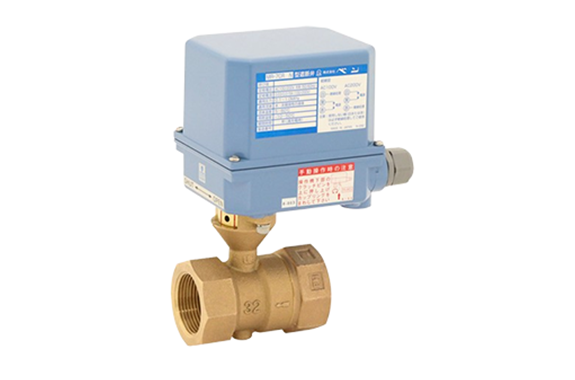

Venn MR-7CRN Capacitor Return Shut-off Valve
Manufacturer: Venn Co., Ltd.
Model: MR-7CRN
Features
- Eccentric structure of the key part
- Can use in grey water (rubber FKM)
- Conforming to the Water Supply Act Performance Standards
Specifications
| Product Symbol | MR7CRN-J |
|---|---|
| Types of valves | electric |
| Activate | Valve closure (capacitor) in case of power failure, valve opening when energized |
| Nominal diameter | 20～50（3/4～2） |
| Applicable fluids | Water/non-corrosive liquids |
| Fluid temperature | 5～60℃ |
| Application pressure | 0.1～1.0MPa |
| Rated voltage | AC100V/200V, 50/60Hz shared |
| Rated current | AC100V：0.03A、AC200V：0.015A |
| Starting current | Nominal Diameter 20 and 25: 0.15/0.075A (AC100/200V), Nominal Diameter 32~50: 0.35/0.175A (AC100/200V) |
| Protective structure | Dustproof and anti-jet shape (IP-55 equivalent) |
| Ambient temperature | -10～50℃ |
| End connection | JIS Rc Screw |
| Material: Body | CAC406 |
| Material: Valve body | SCS13 |
