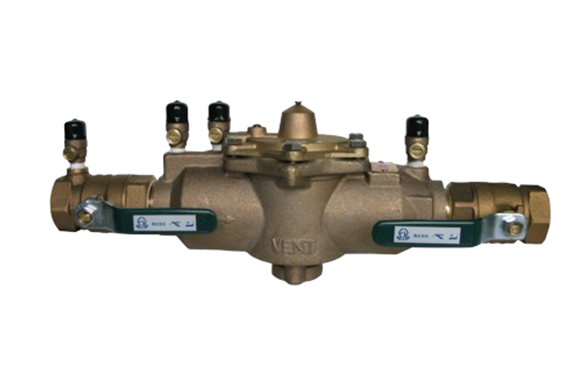

Venn No.009N Reduced Pressure Backflow Preventer (for Water and Hot Water)
Manufacturer: Venn Co., Ltd.
Model: No.009N
Features
- It equipped with 2 stop valves and 4 test cocks for function checks, making it easy to maintain and manage.
- It can inspect and maintained with general tools while attached to the pipe.
- There is only one internal inspection and opening place for the No.009N type.
- The check valve is an easy-to-remove unit type, so it is very easy to maintain.
- The flow path is large and the pressure drop is small.
- It is compact and can install in a small space.
Specifications
| Product Symbol | NO.009NQT |
|---|---|
| Types of valves | Reduced pressure backflow preventer |
| Nominal diameter | 20～50（3/4～2） |
| Applicable fluids | Water and hot water |
| Fluid temperature | 0.5～82℃ |
| Application pressure | 1.2MPa or less |
| Valve opening minimum differential pressure | 0.08MPa |
| End connection | JIS Rc Screw |
| Mounting Position | Upright mounting on horizontal piping |
| Optional Products | Separately strainer, air gap (indirect drain fitting) can be attached. |
| Material: Body | CAC |
| Material Key parts | Synthetic resins and rubber |
