Manufacturer: Venn Co., Ltd.

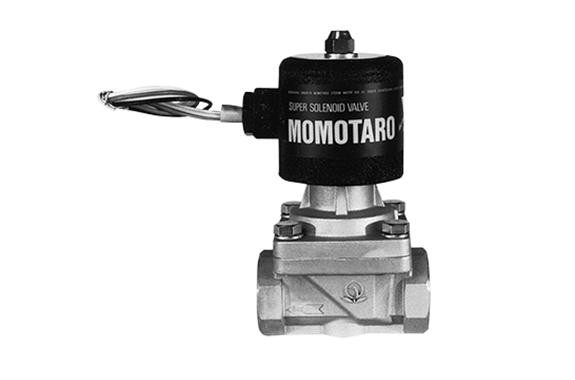

Model: PS-16
Features
- It designs for high-pressure fluid applications.
- In addition, it makes of stainless steel, making it suitable for high-pressure water and steam.
Specifications
| Product Symbol | PS16-V |
|---|
| Types | piston |
|---|
| Activate | Power on |
|---|
| Nominal diameter | 10～50（3/8～2） |
|---|
| Applicable fluids | Water |
|---|
| Fluid temperature | 5～100℃ |
|---|
| Fluid viscosity | Below 20cSt |
|---|
| Application pressure | 0.05～2.0MPa |
|---|
| Minimum differential pressure before and after the valve | 0.05MPa |
|---|
| Allowable leakage | Less than 2mL/min |
|---|
| Rated voltage | AC100/200V 50/60Hz AC110/220V 60Hz Shared |
|---|
| Insulation type | H type |
|---|
| Ambient temperature | 5～60℃ |
|---|
| Protective structure | Dustproof, splash-proof, and indoor use (If used outdoors, please use the TB-03 terminal box together.) |
|---|
| End connection | JIS Rc Screw |
|---|
| Mounting Position | Upright mounting with coils up on horizontal piping |
|---|
| Material: Body | SCS |
|---|
| Material: Valve body | SUS, PTFE discs |
|---|
