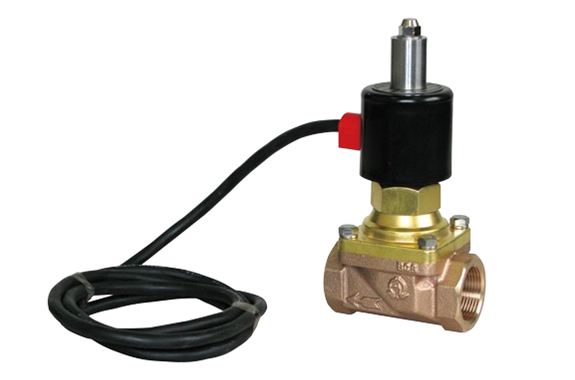

- This solenoid valve can use underwater up to a depth of 1.5 m.
- It is suitable for fountains, pits, and septic tanks.
- In addition, it operates over a wide pressure range up to a maximum of 1.0 MPa.
- Moreover, it supports both vertical and horizontal installation.
- This applies to the PS and WS series.
Specifications
| Product code | PS22CK-W |
|---|---|
| type | Piston type |
| Actuation | Energized closed |
| Nominal diameter | 10-50 (3 / 8-2) |
| Applicable fluid | Water / air |
| Fluid temperature | 5-80 ℃ |
| Applicable pressure | 0-1.0MPa |
| Minimum differential pressure before and after the valve | 0MPa (0.03MPa when the coil is horizontal) |
| Allowable leakage amount | Water: None (visual pressure gauge) Air: 50 mL / min (standard condition) or less (At 0.05-1.0MPa) |
| Rated voltage | Refer to the rated voltage table |
| Insulation type | Type B |
| Ambient temperature | 5-40 ℃ |
| Protective structure | Underwater type |
| End connection | JIS Rc screw |
| Mounting posture | Horizontal / vertical (excluding the coil downward with respect to the mounting pipe) |
| Lead | 1.25mm 22 cores 2m / 2PNCT |
| Applicable water depth | Within 1.5m |
| Material body | CAC |
