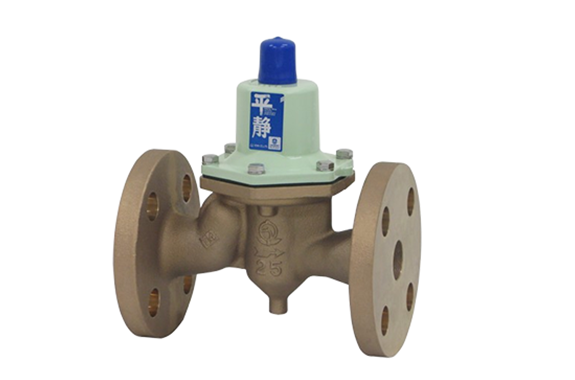

Venn RD-32FN Pressure Reducing Valve
Manufacturer: Venn Co., Ltd.
Model: RD-32FN
Features
- It has a low noise design.
- It is about 50% smaller and lighter than conventional FC products.
- If the diaphragm damages, water will not leak to the outside.
- It has a built-in strainer. ( Nominal diameter 50 or less)
Specifications
| Product Symbol | RD32FN-F |
|---|---|
| Types of valves | Pressure Reducing Valve |
| Types | For 1.6MPa or less |
| Nominal diameter | 25～50（1～2） |
| Applicable fluids | Water and hot water |
| Fluid temperature | 5～90℃ |
| Primary Side Application Pressure | 1.6MPa or less |
| Secondary Side Regulation Pressure Range (Set Pressure) | L ：0.05～0.35MPa H：0.3～0.7MPa |
| Maximum Reduction Ratio | 10:1 |
| Minimum differential pressure before and after the valve | 0.05MPa |
| Allowable leakage | None (pressure gauge visual) |
| End connection | JIS 16K FF Flange |
| Mounting Position | Horizontal and vertical (except strainer cap facing up) |
| Strainer | 40 mesh equivalent (nominal diameter 50 or less) |
| Material: Body | CAC406 |
| Material: Diaphragm | Chlorine Water Resistant EPDM |
| Material: Disc | Chlorine Water Resistant EPDM |
| Material Key parts | CAC406 |
| Material: Spring case | ADC |
