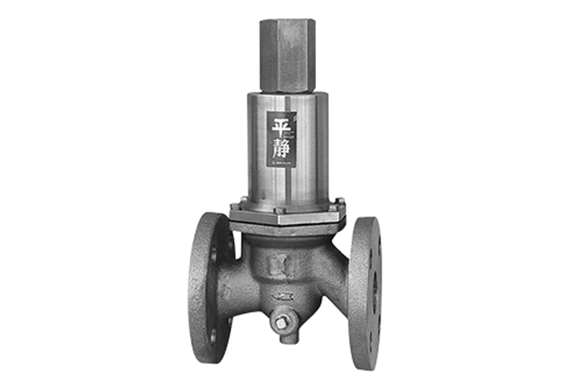

Venn RD-38 Pressure Reducing Valve (for Water, Hot Water, Air, and Liquid)
Manufacturer: Venn Co., Ltd.
Model: RD-38
Features
- The spring and spring case are made of SUS, which provides excellent corrosion resistance.
- In addition, it features a low-noise design.
- Moreover, even if the diaphragm damaged, water will not leak outside.
- Furthermore, the mounting position is flexible.
- As a result, installation is easy.
- You can also install a pressure gauge directly on the body.
- This is available on the secondary side only.
Specifications
| Product Symbol | RD38-D |
|---|---|
| Types of valves | Pressure Reducing Valve |
| Types | For 1.6MPa or less |
| Nominal diameter | 15～40（1/2～1 1/2） |
| Applicable fluids | Water, hot water, or liquids that do not corrode materials |
| Fluid temperature | 5～90℃ |
| Primary Side Application Pressure | 1.6MPa or less |
| Secondary Side Regulation Pressure Range (Set Pressure) | L ：0.05～0.35MPa、 H ：0.3～0.7MPa |
| Maximum Reduction Ratio | 10:1 |
| Minimum differential pressure before and after the valve | 0.05MPa |
| Allowable leakage | None (pressure gauge visual) |
| End connection | JIS Rc Screw |
| Mounting Position | Horizontal and vertical freedom |
| Material: Body | SCS |
| Material: Diaphragm | Chlorine Water Resistant EPDM |
| Material: Disc | Chlorine Water Resistant EPDM |
| Material Key parts | SUS |
| Material: Spring case | SUS |
