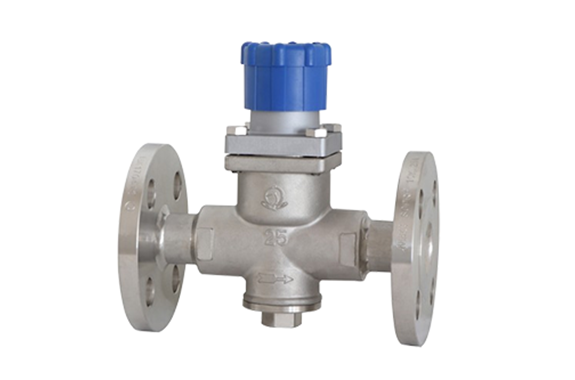

Venn RD-41F type pressure reducing valve (for steam)
Manufacturer: Venn Co., Ltd.
Model: RD-41F Type
Specifications
| Product code | RD41F-D |
|---|---|
| type | Stainless steel, flange |
| Nominal diameter | 15-25 (1/2-1) |
| Applicable fluid | steam |
| Fluid temperature | 220 ℃ or less |
| Primary side applied pressure | 1.0MPa or less |
| Secondary adjustment pressure range | (Color of name plate / spring) L: 0.02 to 0.25MPa (green), M: 0.2 to 0.4MPa (blue), H: 0.35 to 0.8MPa (red) |
| Maximum decompression ratio | 20: 1 |
| Minimum differential pressure before and after the valve | 0.02MPa |
| Deadline boost | 0.02MPa or less |
| offset | Set pressure x 0.5 or less (secondary adjustment pressure: 0.13MPa or less) 0.07MPa or less (secondary adjustment pressure: more than 0.13MPa and 0.4MPa) 0.12MPa or less (secondary adjustment pressure: more than 0.4MPa and 0.8MPa) |
| Allowable leakage amount | 0.05% or less of the rated flow rate |
| End connection | JIS 10K RF flange |
| Material body | SCS |
| Material Main part valve body | SUS |
| Material Main part Valve seat | SUS |
| Material Main part bellows | SUS |
| Mounting posture | Upright mounting on horizontal piping |
