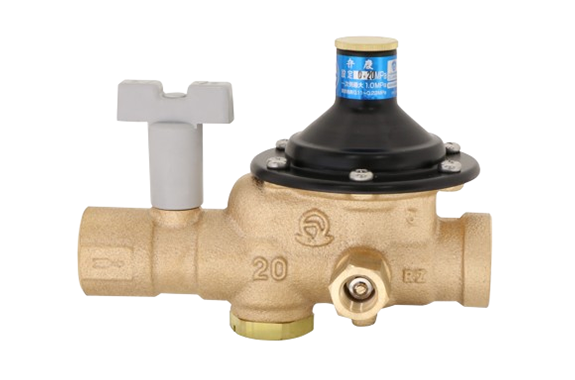

Venn RD-45SN type Door-to-door water pressure reducing valve (for water / hot water)
Manufacturer: Venn Co., Ltd.
Model: RD-45SN
Features
- Uses chlorine water resistant EPDM.
- Hygienic structure without liquid pool.
- Reliable operation from low differential pressure to high differential pressure.
- Water pressure test is possible with the pressure reducing valve installed.
- Easy and simple new test gag method adopted.
Specifications
| Product code | RD45SN-F |
|---|---|
| Valve type | Pressure reducing valve for door-to-door water supply |
| Nominal diameter | 20 (3/4) |
| Applicable fluid | Tap water / hot water |
| Fluid temperature | 5 to 90 ° C (5 to 40 ° C when using tube end core) |
| Primary side applied pressure | 1.0MPa or less |
| Secondary adjustment pressure range (set pressure) | L: 0.05-0.12MPa (0.08MPa) M: 0.11 to 0.23MPa (0.20MPa) H: 0.20 to 0.30MPa (0.20,0.25MPa) |
| Nameplate color | L: green M: Blue H: Red |
| Maximum decompression ratio | 10: 1 |
| Minimum differential pressure before and after the valve | 0.02MPa |
| Rated flow rate | 50L / min (differential pressure 0.1MPa or more) |
| End connection | Entrance / exit: JIS Rc3 / 4 screw (For both P and V) |
| Mounting posture | Horizontal / vertical freedom (excluding strainer cap upward) |
| accessories | Insulation case (self-extinguishing), test gag, joint for pressure gauge (for secondary side, main body already attached) In the case of RD-45SUN type P, a union fitting (pipe, nut, gasket) is also included. |
| strainer | 60 mesh |
| Material body | CAC406 |
| Material diaphragm | Chlorine water resistant EPDM |
| Material disc | Chlorine water resistant EPDM |
| Material ball | CAC plating process |
