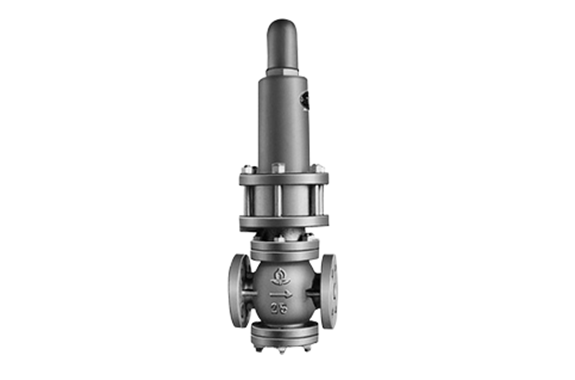

Venn RD-5R Pressure Reducing Valve for Oil and Liquid
Manufacturer: Venn Co., Ltd.
Model: RD-5R
Specifications
| Product Symbol | RD5R-B |
|---|---|
| Types of valves | Pressure Reducing Valve |
| Nominal diameter | 20～150（3/4～6） |
| Applicable fluids | Oils & Liquids |
| Fluid temperature | 5~80°C (5~150°C is also produced by changing the material of the O-ring.) ） |
| Fluid viscosity | Below 700cSt |
| Primary Side Application Pressure | 1.0MPa or less |
| Secondary Side Regulation Pressure Range (Set Pressure) | Nominal diameter 50 or less: L:0.05~0.25, M:0.25~0.45, H:0.45~0.7MPa Nominal diameter 65 or more: L:0.05~0.2, M:0.2~0.5, H:0.5~0.7MPa |
| Maximum Reduction Ratio | 10:1 |
| Minimum differential pressure before and after the valve | 0.05MPa |
| Cut-off boost | Less than 0.02MPa |
| Offset | Nominal diameter 50 or less: within 0.08 MPa Nominal diameter 65 or more: within 0.1 MPa |
| End connection | JIS 10K FF Flange |
| Mounting Position | Upright mounting on horizontal piping |
| Material: Body | FC |
| Material: Valve body | CAC502 |
| Material: Valve seat | CAC502 |
