Venn Co.

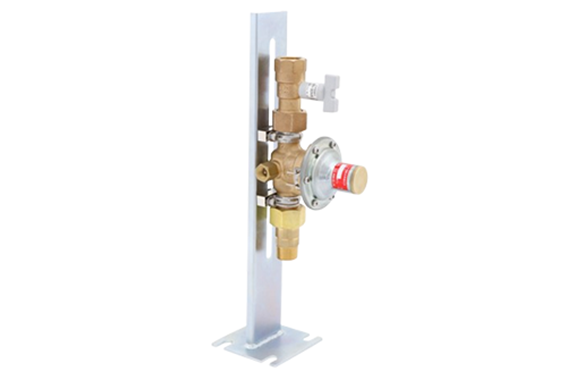

Venn RHU-1 Door-to-door Reducing Valve Unit (for water and hot water)
Manufacturer: Venn Co., Ltd.
Model: RHU-1
Features
- It supports labor-saving installation by combining door-to-door pressure reducing valves into a single unit.
- In addition, the rubber parts make of FKM for improved durability.
- Moreover, it operates reliably from low to high differential pressure.
- As a result, water pressure testing is possible with the pressure reducing valve installed.
Specifications
| Product Symbol | RHU1-FH |
|---|---|
| Types of valves | Door-to-door pressure reducing valve unit |
| Nominal diameter | 20（3/4） |
| Applicable fluids | Tap water and hot water |
| Fluid temperature | 5～90℃ |
| Primary Side Application Pressure | 1.0MPa or less |
| Secondary Side Regulation Pressure Range (Set Pressure) | 0.20～0.35MPa（0.20,0.25,0.30,0.35MPa） |
| Nameplate color | Red |
| Minimum differential pressure before and after the valve | 0.02MPa (0.025MPa for check valve fittings) |
| Rated flow rate | When using a check valve without a fitting: 50 L/min (differential pressure 0.1 MPa or more) When using a check valve with a fitting: 40 L/min (differential pressure 0.1 MPa or more) |
| End connection | Primary side: JIS Rc3/4 screw, Secondary side: JIS R3/4 thread or JIS Rc3/4 thread |
| Accessories | Test lot, pressure gauge fittings (for the secondary side, body attached), mount |
| Strainer | 60 mesh equivalent |
| Material: Body | CAC406 |
| Material: Diaphragm | FKM |
| Material: Disc | FKM |
