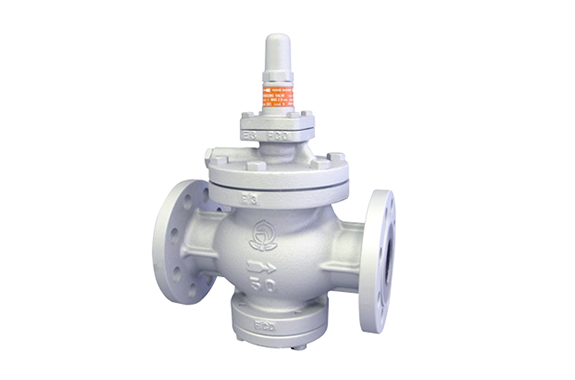

Venn RP-10 type pressure reducing valve (for steam)
Manufacturer: Venn Co., Ltd.
Model: RP-10 type
Features
- This is a pilot-type pressure reducing valve for high-pressure steam.
- It is designed to safely lower steam pressure.
- In addition, it supports a maximum pressure reduction ratio of 20:1.
- As a result, it operates stably even under high pressure differences.
- Moreover, the face-to-face dimensions match the former RP-2H pressure reducing valve.
- At the same time, the weight is reduced by about 40%.
Specifications
| Product code | RP10-C |
|---|---|
| type | Made of cast steel |
| Nominal diameter | 15-150 (1/2-6) |
| Applicable fluid | steam |
| Fluid temperature | 250 ° C or less |
| Primary side applied pressure | 3.0MPa or less |
| Secondary adjustment pressure range | 0.03 ~ 0.8MPa |
| Maximum decompression ratio | 20: 1 |
| Minimum differential pressure before and after the valve | Nominal diameter 15 ~ 80: 0.05MPa, Nominal diameter 100 ~ 150: 0.07MPa |
| Deadline boost | 0.02MPa or less |
| offset | Within 0.02MPa (Secondary adjustment pressure 0.03 to 0.035MPa) Within 0.03MPa (Secondary adjustment pressure over 0.035 0.07MPa) Within 0.05MPa (Secondary adjustment pressure over 0.07 0.8MPa) |
| Allowable leakage amount | 0.05% or less of the rated flow rate |
| End connection | JIS 30K RF flange |
| Material body | SCPH |
| Material Valve body | SUS |
| Material Valve seat | SUS |
| Material Piston / Cylinder | SUS |
| Handle or cap color | Green |
| Mounting posture | Upright mounting on horizontal piping |
