Venn Co.

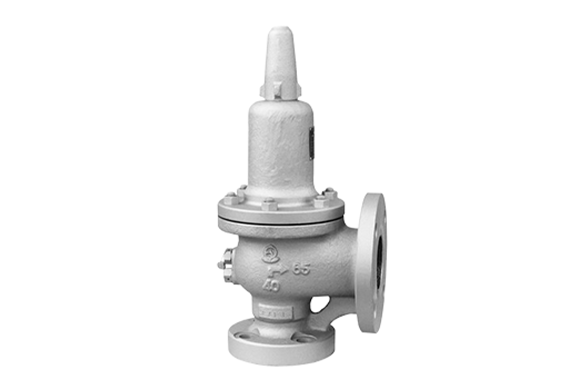

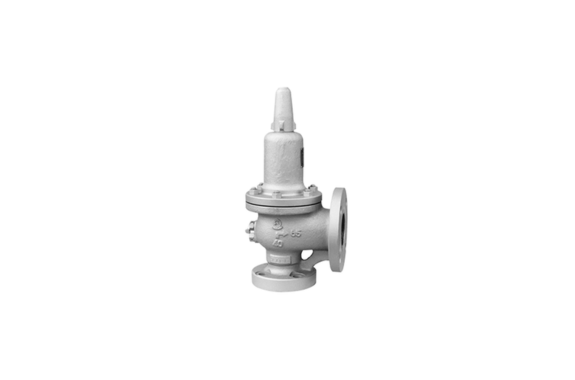

Venn SF-16 type safety valve (full volume type)
Manufacturer: Venn Co., Ltd.
Model: SF-16
Specifications
| Product code | SF16-C |
|---|---|
| format | Full quantity formula |
| Cap format | No lever |
| Nominal diameter | 40-150 (1 1/2-6) |
| Applicable fluid | Air / gas / liquid |
| Set pressure range | 0.1-1.0MPa |
| Fluid temperature | -5 to 235 ° C |
| End connection | Entrance: JIS 10K RF flange (thickness depends on dimension table) Exit: JIS 10K FF flange |
| Mounting posture | Upright mounting |
| Material body | SCPH |
| Material Valve body | SUS or SCS |
| Material Valve seat | SUS or SCS |
