Venn Co.

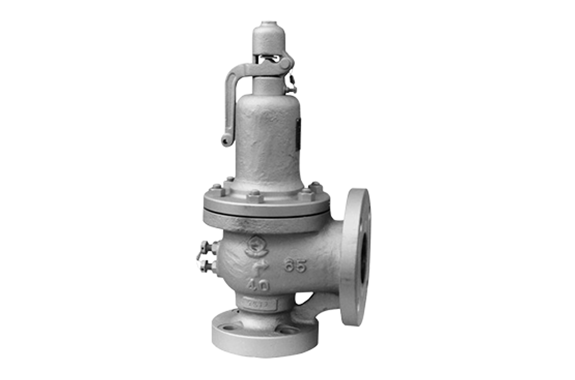

Venn SF-17L type safety valve (full volume type)
Manufacturer: Venn Co., Ltd.
Model: SF-17L
Specifications
| Product code | SF17L-C |
|---|---|
| format | Full quantity formula |
| Cap format | With lever |
| Nominal diameter | 40-150 (1 1/2-6) |
| Applicable fluid | steam |
| Set pressure range | 1.0-2.0MPa |
| Fluid temperature | -5 to 235 ° C |
| End connection | Entrance: JIS 16K, 20K RF flange (thickness depends on the dimension table) Exit: JIS 10K FF flange |
| Mounting posture | Upright mounting |
| Material body | SCPH |
| Material Valve body | SUS or SCS Stellite welding |
| Material Valve seat | SUS or SCS Stellite welding |
