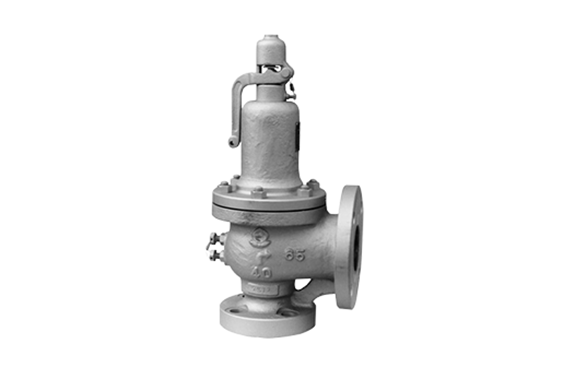

Venn SF-19L type safety valve (full volume type)
Manufacturer: Venn Co., Ltd.
Model: SF-19L
Specifications
| Product code | SF19L-C |
|---|---|
| format | Full quantity formula |
| Cap format | With lever |
| Nominal diameter | 15-150 (1/2-6) |
| Applicable fluid | steam |
| Set pressure range | Nominal diameter 25 or less: 0.1 to 3.0 MPa Nominal diameter 40 or more: 2.0 to 3.0 MPa |
| Fluid temperature | -5 to 235 ° C |
| End connection | Entrance: JIS 10 , 20, 30K RF flange (thickness depends on the dimension table) Exit: JIS 10K FF flange |
| Mounting posture | Upright mounting |
| Material body | SCPH |
| Material Valve body | SUS or SCS Valve body / valve seat Stellite welding |
| Material Valve seat | SUS or SCS Valve body / valve seat Stellite welding |
