Venn Co.

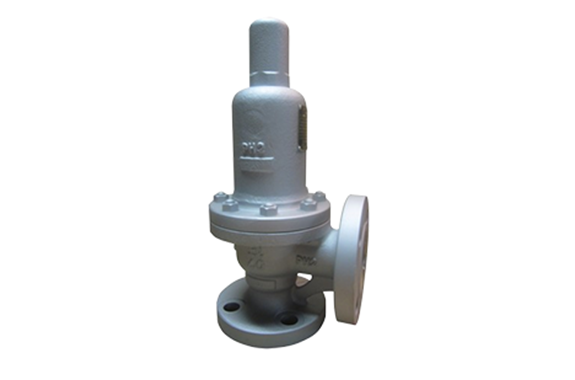

Venn SL-12 type safety valve (lift type)
Manufacturer: Venn Co., Ltd.
Model: SL-12
Specifications
| Product code | SL12-C |
|---|---|
| format | Lifting ceremony |
| Cap format | No lever |
| Nominal diameter | 15-150 (1/2-6) |
| Applicable fluid | Steam / air / gas / liquid |
| Set pressure range | Nominal diameter 25 or less: 0.035 to 3.0MPa Nominal diameter 40 to 100: 2.0 to 3.0MPa Nominal diameter 125 or more: 0.035 to 3.0 MPa |
| Fluid temperature | -5 to 235 ° C |
| End connection | JIS 10, 16, 20, 30K RF flange |
| Mounting posture | Upright mounting |
| Material body | SCPH |
| Material Valve body | SUS or SCS Stellite welding |
| Material Valve seat | SUS or SCS Stellite welding |
