- This is a sealed safety relief valve with excellent corrosion resistance.
- In addition, the spring case made of bronze, the main body uses SCS, and the spring is SUS.
- Moreover, it can use with three types of fluids: steam, gas, and liquid.
- This applies to the metal seat type.
- Furthermore, it is one to two sizes smaller and lighter than our conventional products.
Venn Co.

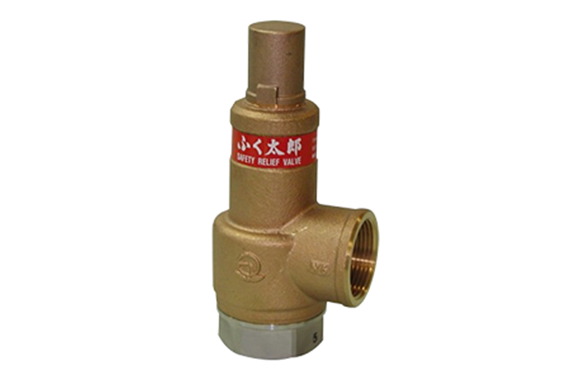

Venn SL-38 type safety relief valve
Manufacturer: Venn Co., Ltd.
Model: SL-38
Features
Specifications
| Product code | SL38-D |
|---|---|
| format | Lifting ceremony |
| type | Hand supplies (metal sheet type) |
| Nameplate color | Red |
| Cap format | No lever |
| Nominal diameter | 15-50 (1/2-2) |
| Applicable fluid | steam・ Gas / liquid |
| Set pressure range | 0.05-1.0MPa |
| Fluid temperature | 225 ℃ or less |
| End connection | JIS Rc screw |
| Mounting posture | Upright mounting |
| Material body | SCS |
| Material Valve body | SCS |
| Material Valve seat | SCS |
| Material Spring case | CAC406 |
