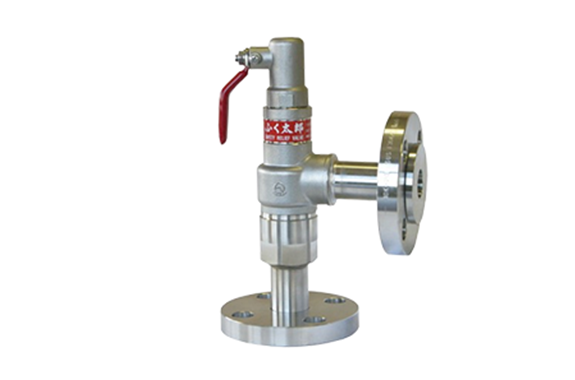

Manufacturer: Venn Co., Ltd.
Model: SL-39F
Features
- This is a sealed safety relief valve with excellent corrosion resistance.
The spring case, main body made of SCS, and the spring made of SUS provide high durability.
In addition, it can use with three types of fluids: steam, gas, and liquid.
This applies to the metal seat type.
Moreover, it is one to two sizes smaller and lighter than our conventional products.
Specifications
| Product code | SL39F-D |
|---|
| format | Lifting ceremony |
|---|
| type | Hand supplies (metal sheet type) |
|---|
| Nameplate color | Red |
|---|
| Cap format | With a sealing lever |
|---|
| Nominal diameter | 15-50 (1/2-2) |
|---|
| Applicable fluid | steam・. Gas / liquid |
|---|
| Set pressure range | 0.05-1.0MPa |
|---|
| Fluid temperature | 150 ° C or less (235 ° C or less) |
|---|
| End connection | JIS 10K loose flange |
|---|
| Mounting posture | Upright mounting |
|---|
| Material body | SUS |
|---|
| Material Valve body | SCS |
|---|
| Material Valve seat | SUS |
|---|
| Material Spring case | |
|---|
