Venn Co.

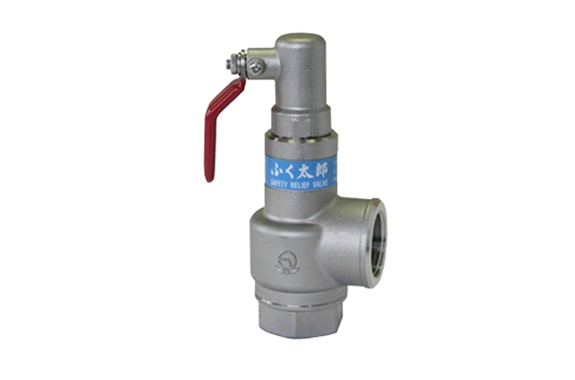

Venn SL-39V Safety Relief Valve
Manufacturer: Venn Co., Ltd.
Model: SL-39V
Features
- This is a sealed safety relief valve with excellent corrosion resistance.
- The spring case, key parts made of SCS, and the spring made of SUS ensure high durability.
- In addition, it can use with three fluids: steam, gas, and liquid.
- This applies to the metal seat type.
- Moreover, it is one to two sizes smaller and lighter than our conventional products.
Specifications
| Product Symbol | SL39V-D |
|---|---|
| Form | Yang program |
| Types | Soft seat type |
| Nameplate color | Blue |
| Cap format | with sealed lever |
| Nominal diameter | 15～50（1/2～2） |
| Applicable fluids | Air, gas, liquid |
| Set pressure range | 0.05～1.0MPa |
| Fluid temperature | Below 120°C |
| End connection | JIS Rc Screw |
| Mounting Position | Upright mounting |
| Material: Body | SCS |
| Material: Valve body | SCS (Disk: FKM) |
| Material: Valve seat | SCS |
| Material: Spring case | SCS |
