Manufacturer: Venn Co., Ltd.

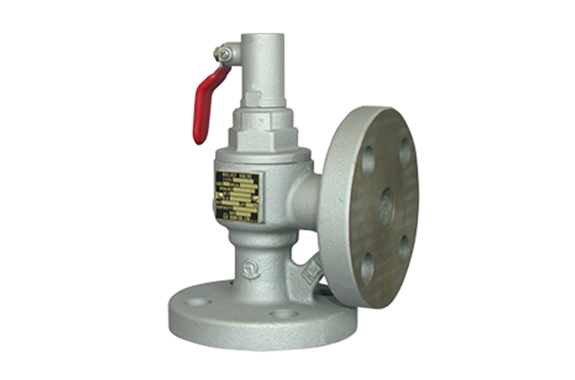

Model: SL-43
Features
- In addition, the weight is reduced by about 22 to 36% compared to our conventional products.
- Moreover, it provides the same user experience as the Fukutaro series.
- This is because parts other than the main body, spring case, and valve seat are the same as the SL-37 and SL-38 types.
- Therefore, the performance remains the same.
Specifications
| Product code | SL43-G |
|---|
| format | Lifting ceremony |
|---|
| type | Hand supplies (metal sheet type) |
|---|
| Nameplate color | Red |
|---|
| Cap format | With a sealing lever |
|---|
| Nominal diameter | 15-50 (1/2-2) |
|---|
| Applicable fluid | steam・ Gas / liquid |
|---|
| Set pressure range | 0.05-1.0MPa |
|---|
| Fluid temperature | 150 ° C or less (220 ° C or less) ) |
|---|
| End connection | JIS 10K FF flange |
|---|
| Mounting posture | Upright mounting |
|---|
| Material body | FC |
|---|
| Material Valve body | SCS (SUS) |
|---|
| Material Valve seat | SCS (SUS) |
|---|
| Material Spring case | FC |
|---|
