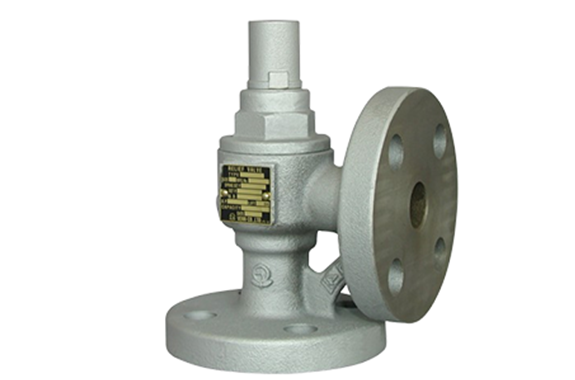

Venn SL-44V type safety relief valve
Manufacturer: Venn Co., Ltd.
Model: SL-44V
Features
- Except for the main body and spring case, corrosion-resistant stainless steel is used.
- As a result, durability improves.
- In addition, the weight is reduced by about 22 to 36% compared to our conventional products.
- Moreover, it can use with the same operating feel as the Fukutaro series.
- This is because all parts other than the main body, spring case, and valve seat are the same as the SL-37 and SL-38 types.
- Therefore, the performance remains the same.
Specifications
| Product code | SL44V-G |
|---|---|
| format | Lifting ceremony |
| type | Soft sheet type |
| Nameplate color | Blue |
| Cap format | No lever |
| Nominal diameter | 15-50 (1/2-2) |
| Applicable fluid | Air / gas / liquid |
| Set pressure range | 0.05-1.0MPa |
| Fluid temperature | 120 ℃ or less |
| End connection | JIS 10K FF flange |
| Mounting posture | Upright mounting |
| Material body | FC |
| Material Valve body | SCS (SUS), disk (FKM) |
| Material Valve seat | SCS (SUS), disk (FKM) |
| Material Spring case | FC |
| Material disc | Disk (FKM) |
