Venn Co.

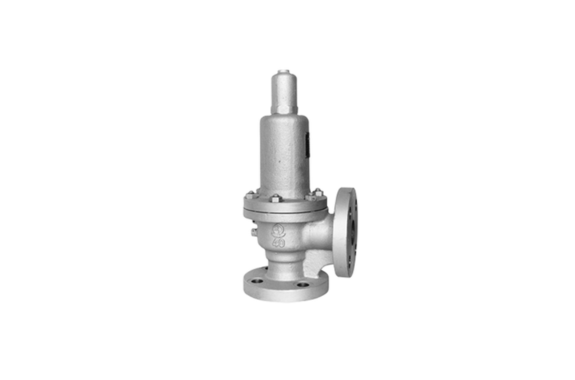

Venn SL-46ED type relief valve (for pump relief)
Manufacturer: Venn Co., Ltd.
Model: SL-46ED
Features
- The damper mechanism of the valve body suppresses the sudden movement of the valve body due to pulsating pressure and fluctuating pressure at high pressure.
- It is a back pressure balance structure that eliminates the influence of back pressure due to the piping condition on the relief valve outlet side.
Specifications
| Product code | SL46ED-M |
|---|---|
| format | Relief valve |
| Cap format | No lever |
| Nominal diameter | 40-75 (1 1/2-3) |
| Applicable fluid | Water / oil / liquid |
| Set pressure range | 0.035-2.0MPa |
| Fluid temperature | Manufactured up to 5-80 ° C (up to 150 ° C). |
| Maximum allowable back pressure | 1.0MPa |
| End connection | JIS 20K FF flange |
| Mounting posture | Upright mounting |
| Material body | FCD |
| Material parts | SUS |
