Venn Co.

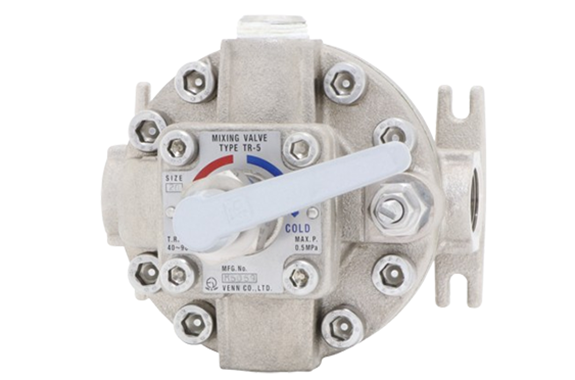

Venn TR-5 Mixing Valve
Manufacturer: Venn Co., Ltd.
Model: TR-5
Features
- First, it features a lightweight and compact design, which makes installation quick and easy.
- Moreover, as a direct-mixing type, it can supply hot water rapidly.
- In addition, the pre-lock type enables convenient manual opening and closing operations.
- Finally, it adopts a safe design in which steam is supplied only after water has begun flowing, thereby enhancing operational safety.
Specification
| Product Symbol | TR5-J |
|---|---|
| Types of valves | Mixing Valve |
| Nominal diameter | 20（3/4） |
| Adjustable temperature range | 40～90℃ |
| Applicable fluids | Water and steam |
| Fluid temperature | Below 160°C |
| Application pressure | Water: 0.2~0.5MPa, Steam: 0.2~0.5MPa |
| Maximum differential pressure applied | Minimum Working Differential Pressure: Water Pressure – Hot Water Pressure = 0.1MPa or more |
| Pressure difference between hot water and water input | Water: Steam = within 1:1~2 |
| End connection | JIS Rc Screw |
| Mounting Position | Horizontal and vertical (downward on the hot water side) |
| Accessories | Options: thermometer, hose, spray nozzle, connection member set (BTR-5 type) *Ordered separately |
| Material: Body | CAC Nickel Plating |
| Material Key parts | SUS |
