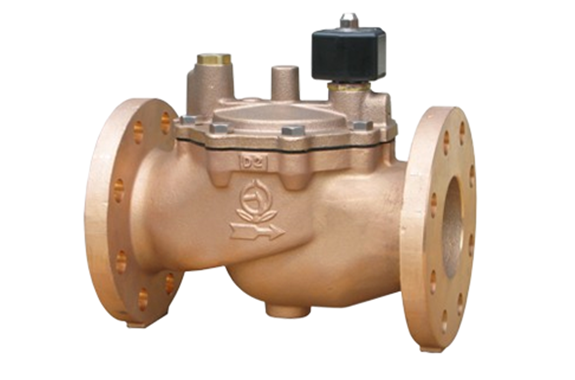

Venn VF-14 type solenoid valve (for liquids and gases)
Manufacturer: Venn Co., Ltd.
Model: VF-14
Features
- The drive unit uses a diaphragm.
- In addition, the upper cover, including the pilot valve, makes of bronze.
- A strainer builds into the flow path, so the valve is less affected by debris and rust.
- Moreover, it equips with a water hammer mitigation mechanism.
- It is lightweight, compact, and energy-efficient with low power consumption.
- Furthermore, the VF-14 and VF-14C types are made entirely of bronze, eliminating sources of rust.
Specification
| Product code | VF14-F |
|---|---|
| type | Diaphragm type |
| Actuation | Energized open |
| Nominal diameter | 80/100 (3/4) |
| Applicable fluid | Water / air ·oil |
| Fluid temperature | 5-60 ℃ |
| Fluid viscosity | 50cSt or less |
| Applicable pressure | 0.03 to 1.0MPa |
| Minimum differential pressure before and after the valve | 0.03MPa |
