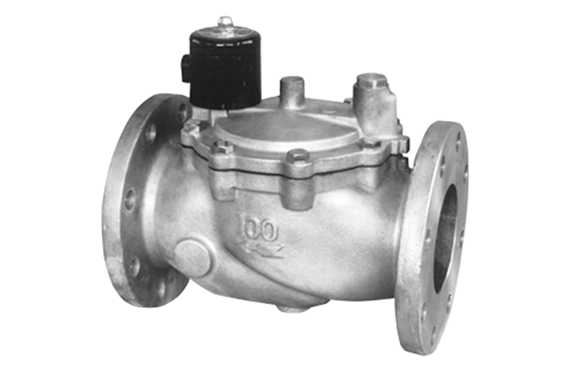

Venn VF-14K Fountain Solenoid Valve (K Series)
Manufacturer: Venn Co., Ltd.
Model: VF-14K
Features
- This solenoid valve can operate underwater up to a depth of 1.5 m.
- It uses for flood control in fountains, pits, septic tanks, and similar applications.
- In addition, it supports a wide pressure range up to a maximum of 1.0 MPa.
- Moreover, it can install both vertically and horizontally.
- This applies to the PS and WS series.
Specifications
| Product Symbol | VF-14K-F |
|---|---|
| Types | diaphragm |
| Activate | Power on |
| Nominal diameter | 65～100（2 1/2～4） |
| Applicable fluids | Water, air, inert gas |
| Fluid temperature | 5～60℃ |
| Application pressure | 0.03～1.0MPa |
| Minimum differential pressure before and after the valve | 0.03MPa |
| Allowable leakage | None (Pressure gauge visual inspection, gas is 0.02~1.0MPa) |
| Rated voltage | Refer to the voltage rating table |
| Insulation type | Type B |
| Ambient temperature | 5～40℃ |
| Protective structure | Aquatic shape |
| End connection | JIS 10K FF Flange |
| Mounting Position | Upright mounting with coils up on horizontal piping |
| Lead Wire | 1.25mm22 cores 2m・2PNCT |
| Applicable water depth | Within 1.5m |
| Material: Body | CAC |
